Name: ACT Sport/Race Sprung 6 Pad Kit - 92-05 Honda Civic D15 D16 D17, 93-97 Del Sol D15 D16 - HC5-SPG6
SKU: 12272

HC5-SPG6 kit features a Sport pressure plate for a nice upgrade. ACT Sport pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT’s 6-pad, spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Specifications:
Torque Capacity (ft/lbs): 250
Clutch Disc Diameter (mm): 212
Input Shaft Diameter (inches): 7/8"
Input Spline Spline Count: 20

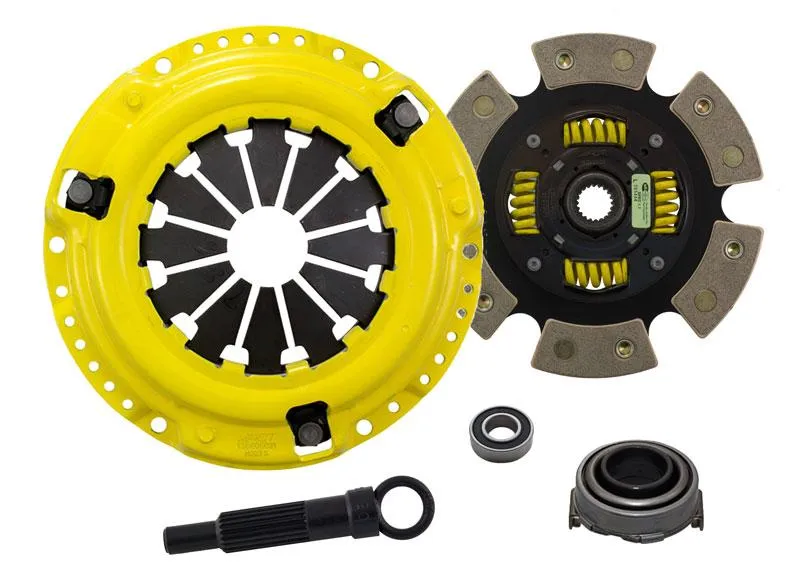

What's Inside The Kit?
Pressure Plate: H023S
Clutch Disc: 6212104
Release Bearing: RB820
Pilot Bearing: PB1002
Alignment Tool: AT20

Fitment:
92-95 Honda Civic CX 1.5 D15B8
92-95 Honda Civic DX LX 1.5 D15B7
92-95 Honda Civic EX 1.6 D16Z6
92-95 Honda Civic Si 1.6 D16Z6
96-00 Honda Civic CX DX LX 1.6 D16Y7
96-00 Honda Civic EX 1.6 D16Y8
96-00 Honda Civic HX 1.6 D16Y5
01-05 Honda Civic DX 1.7 D17A1
01-05 Honda Civic EX 1.7 D17A2
01-05 Honda Civic HX 1.7 D17A6
01-05 Honda Civic LX 1.7 D17A1
93-95 Honda Del Sol S 1.5 D15B7
96-97 Honda Del Sol S 1.6 D16Y7 *Must use with 90-00 Civic SOHC flywheel*
93-95 Honda Del Sol Si 1.6 D16Z6
96-97 Honda Del Sol Si 1.6 D16Y8 *Must use with 90-00 Civic SOHC flywheel*
